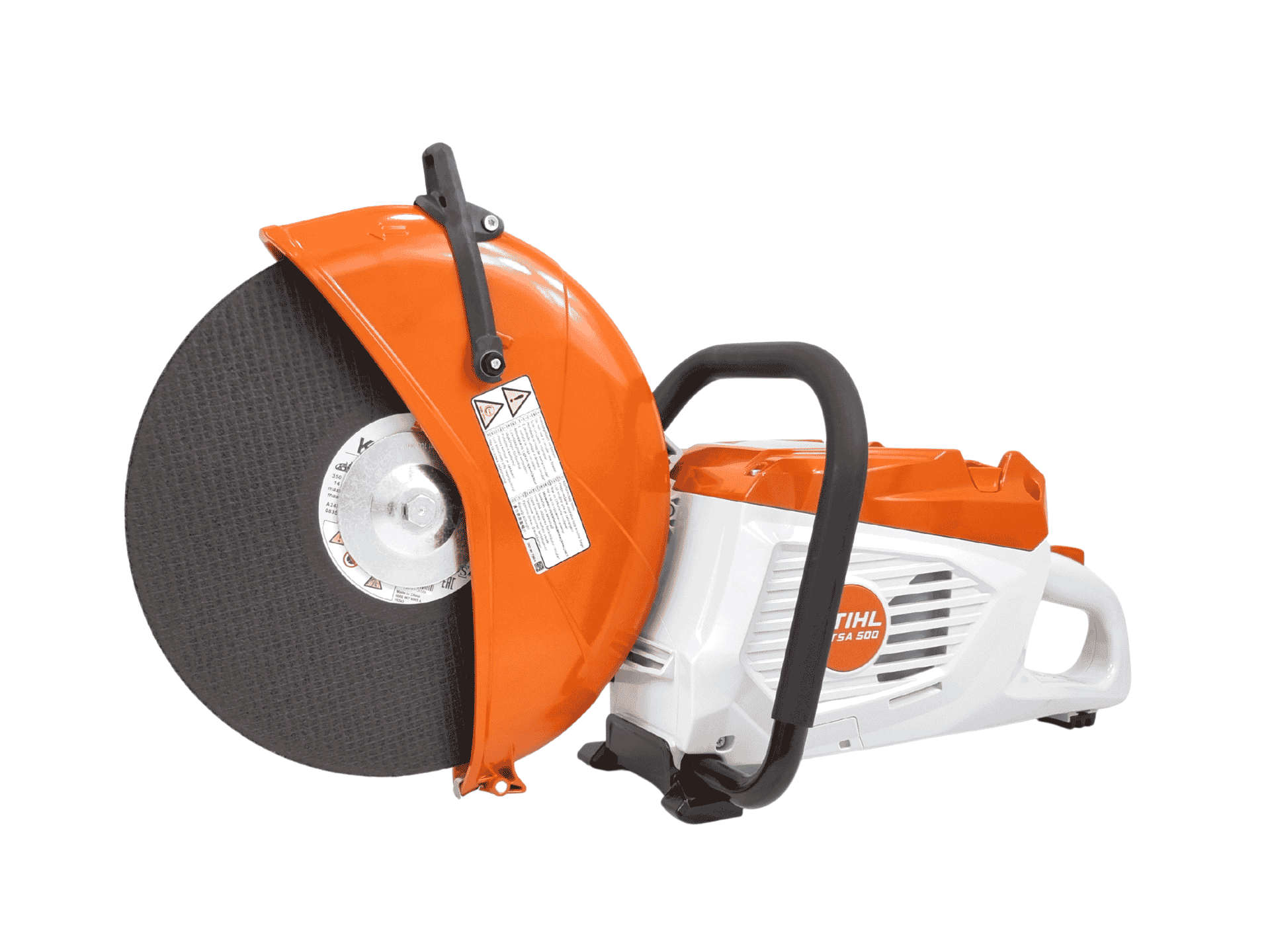

STIHL TSA 500 B Cordless Cut-Off Saw

The high-performance STIHL TSA 500 B cordless cut-off saw from the STIHL AP System is powered by two STIHL AP 500 S batteries. It is highly versatile and ideal for professionals in gardening and landscaping, building construction and civil engineering, as well as for emergency services and the fire department. It reliably cuts and severs a wide variety of materials, such as steel, concrete, brick, and natural stone. Thanks to its emission-free operation, the TSA 500 B cordless cut-off saw can also be used inside buildings.

The powerful EC motor operates with virtually no wear, is quiet, and is characterized by smooth operation and low vibration. In addition, the electronic control system ensures that the TSA 500 B operates at optimal performance throughout the entire battery runtime. To protect the motor from metal dust and metal particles and ensure a long service life, the cordless cut-off saw is equipped with the STIHL Magnetic Filter. It is easy to clean, especially during frequent cutting work with steel.

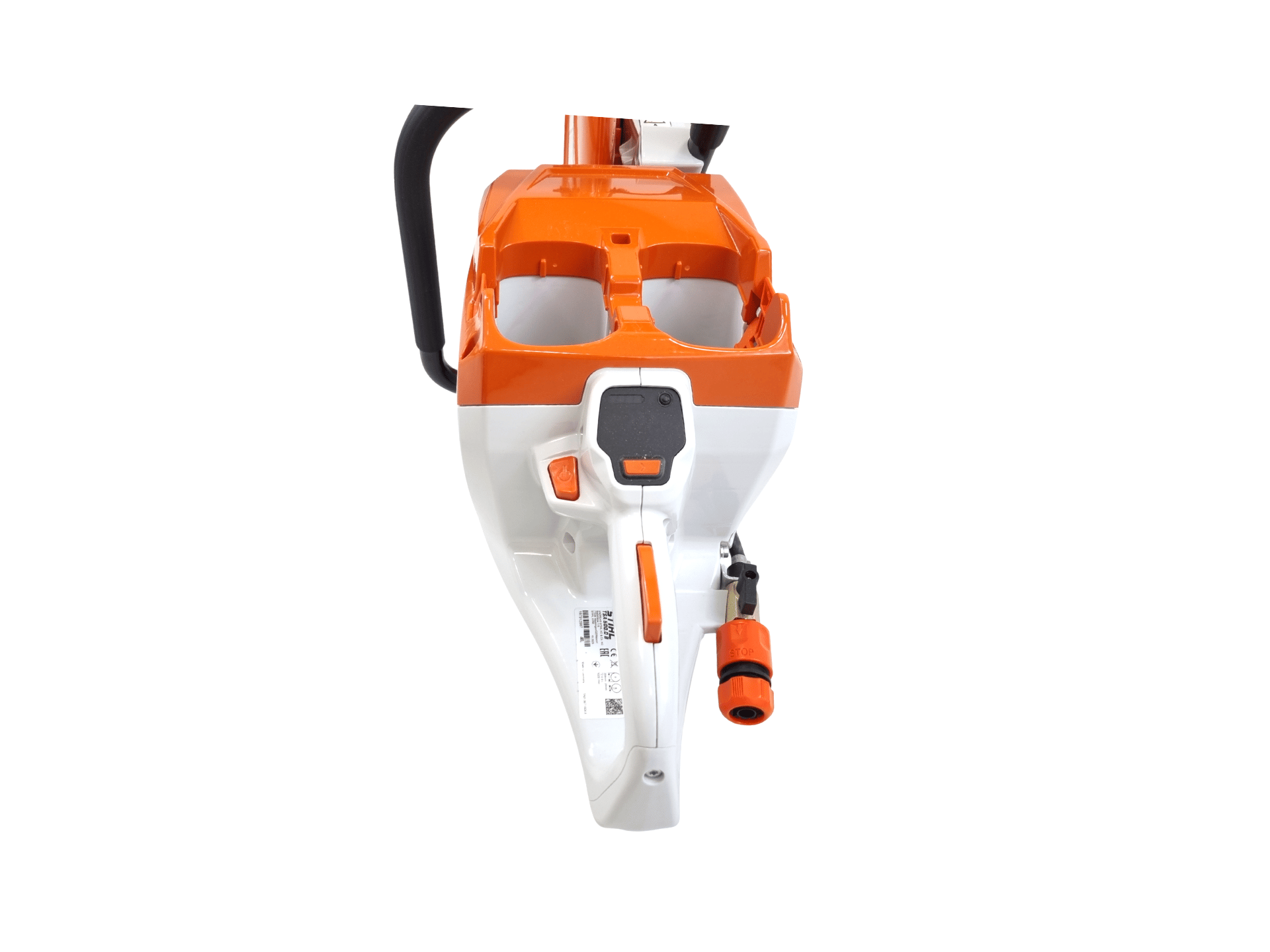

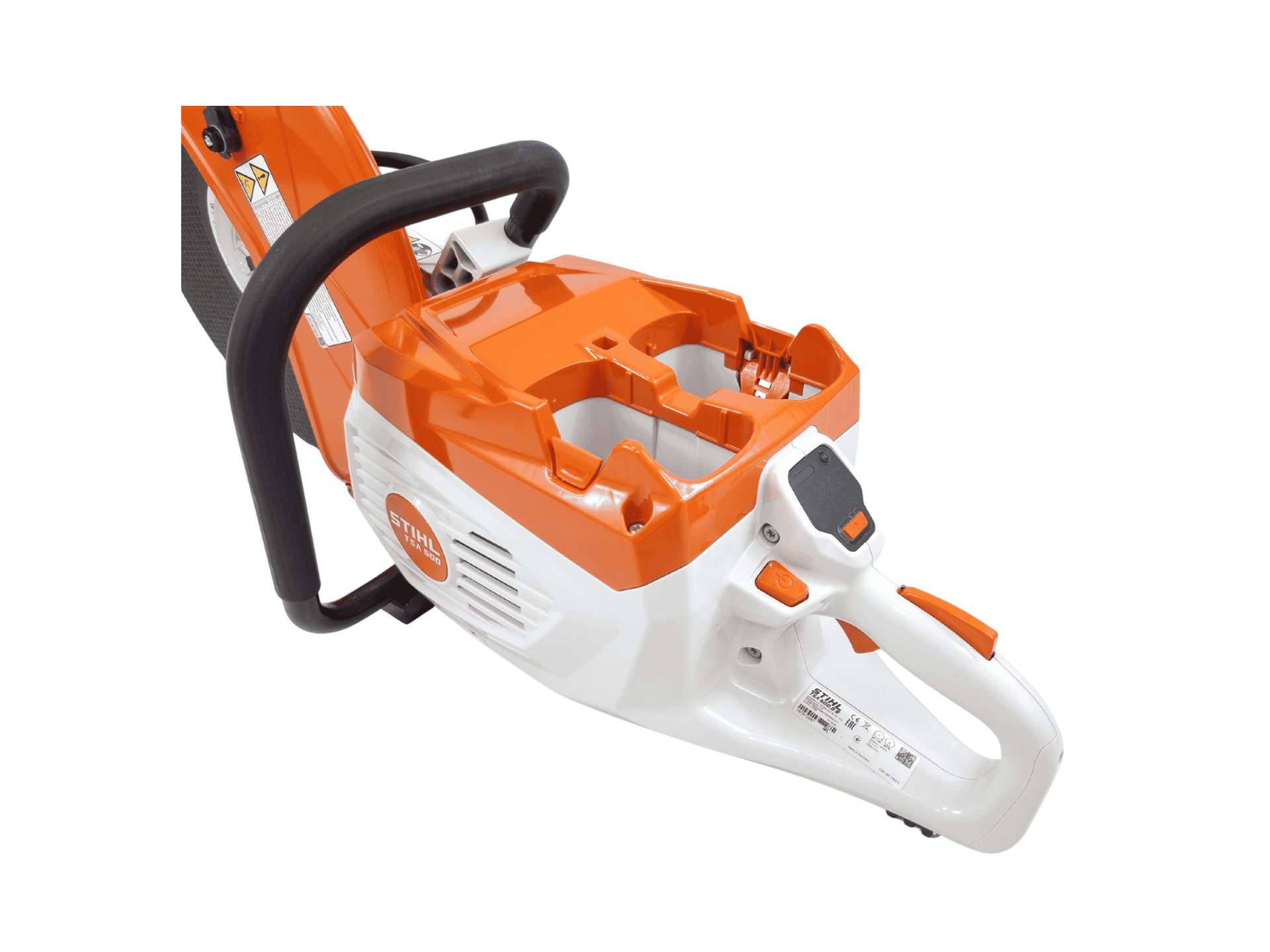

The STIHL TSA 500 B is easy to use: Thanks to the ergonomically optimized handle with a digital control unit, the ADVANCE PLUS module with an integrated STIHL Smart Connector for integration into the STIHL Connected device management system, and an LED display, all controls are conveniently within reach.

The ergonomic control handles and the rigid construction of the TSA 500 B enable precise guidance when starting the cut and throughout the cutting process. The TSA 500 B is designed for 350-mm cutting discs and achieves a maximum cutting depth of 125 mm. In the accessories for angle grinders, you’ll find a variety of cutting discs—such as diamond cutting discs—for different applications. When purchasing cutting discs, make sure to select the correct size for your cut-off saw and that the discs are suitable for the materials you intend to cut.

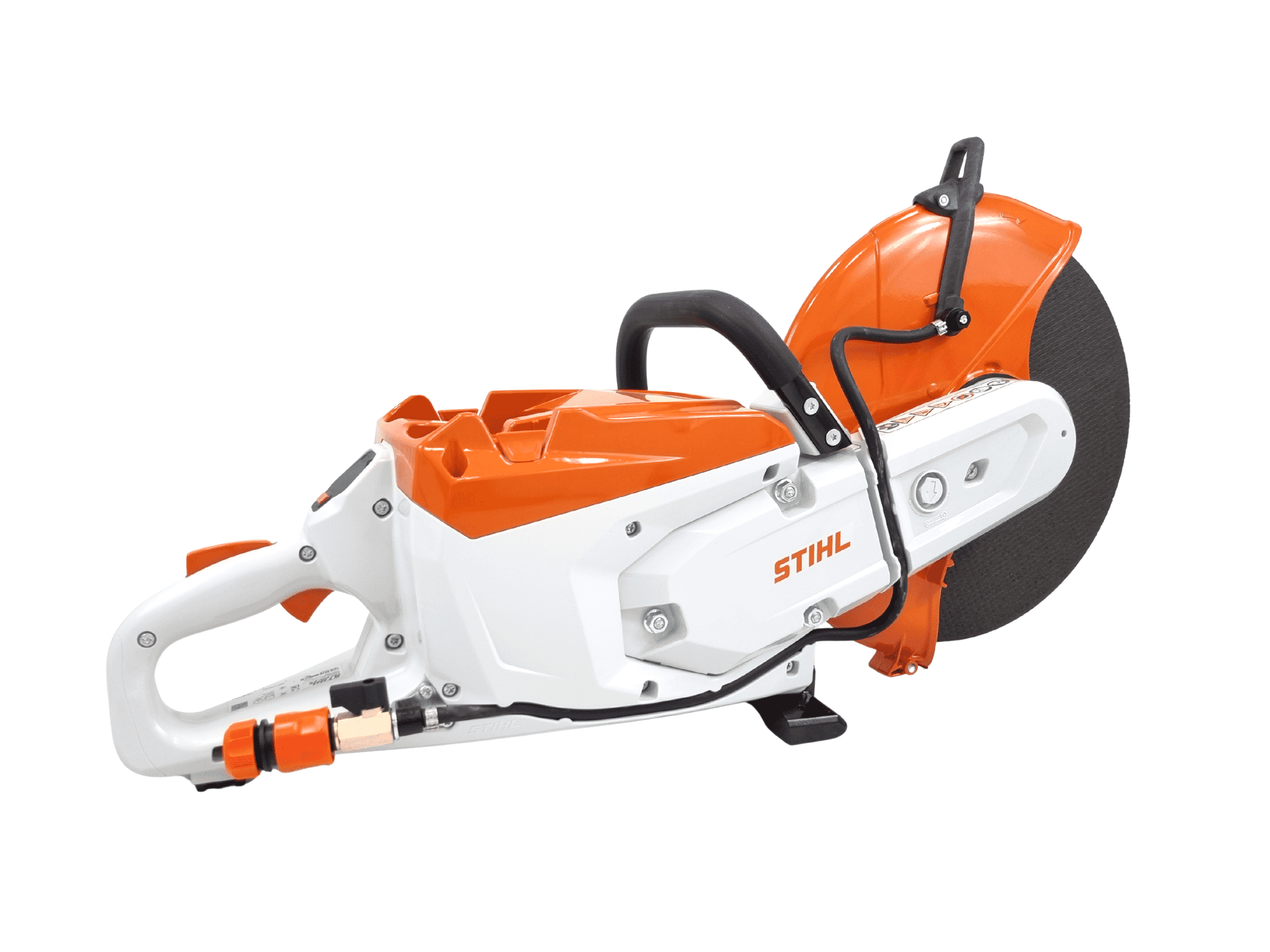

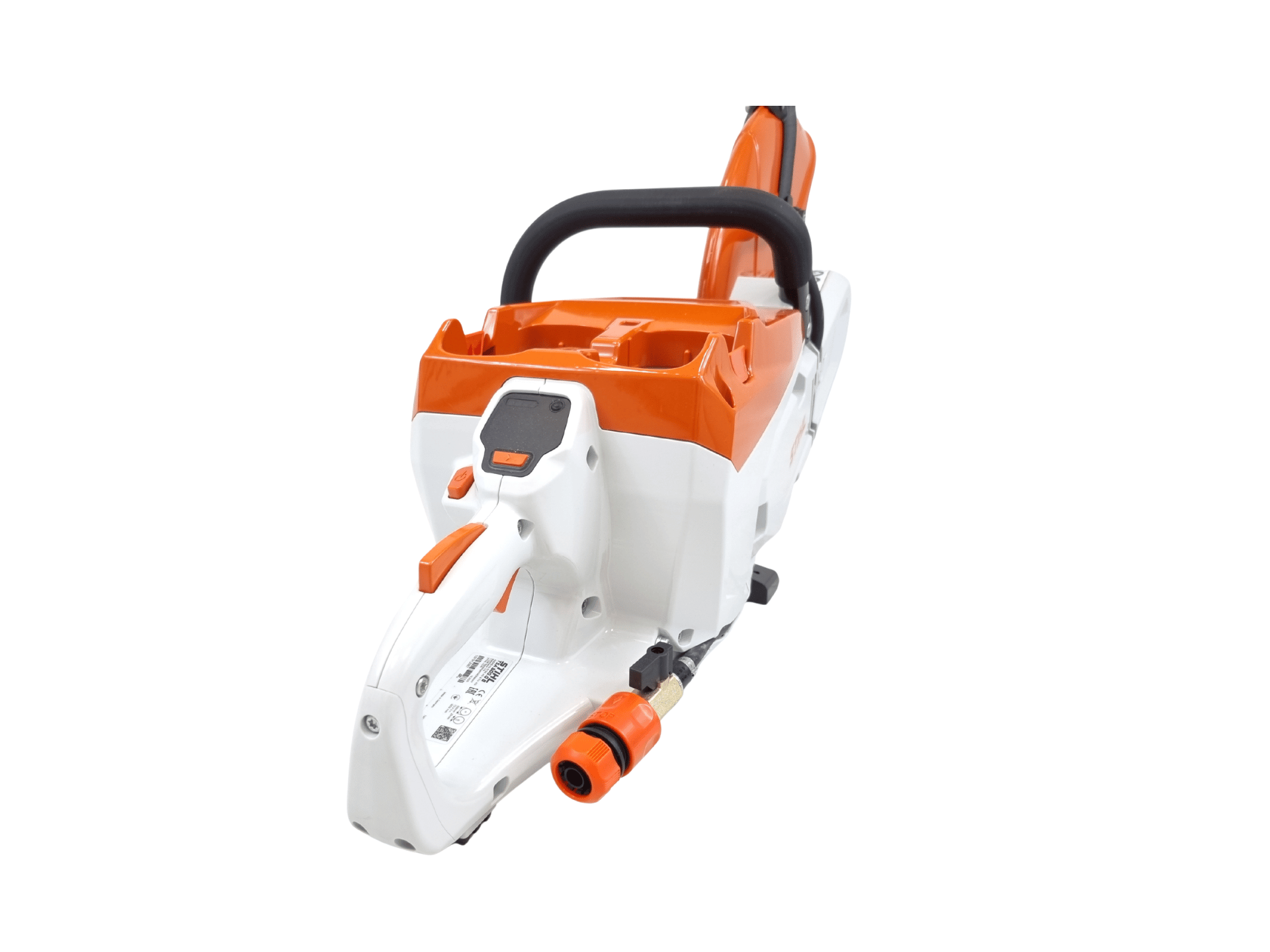

Another advantage of the STIHL TSA 500 B cordless cut-off saw is the deceleration brake with energy recovery function. It slows the cutting disc to a stop within a few seconds—and you can resume work almost immediately. During braking, kinetic energy is converted into electrical energy and fed back into the battery. The standard water connection allows dust to be efficiently collected both indoors and outdoors. This enables efficient work with minimal strain.

The adjustable magnesium guard with integrated water guide provides protection during operation. It effectively channels away debris while offering an excellent view of the cutting disc.

All cordless tools within the STIHL AP System are designed for professional applications and for daily use, even under adverse weather conditions. Therefore, they feature certified splash protection. Their effectiveness is verified through rigorous internal testing. The splash-proof test is based, among other things, on the IPX4 standard.
